Custom Electric Kayak Motors: Powerful, Silent & IP68 Waterproof

Engineer the ultimate eco-friendly watercraft. Our underwater brushless thrusters deliver high thrust, extended battery range, and whisper-quiet operation for marine and freshwater adventures.

  • IP68 Submersible & Saltwater Ready: Complete waterproofing with corrosion-resistant marine-grade materials.
  • Extended Range Efficiency: Optimized thrust-to-power ratio for longer time on the water.
  • Whisper-Quiet Operation: Below 50 dB brushless design for zero-disturbance fishing and exploring.
  • Compact Integration: Lightweight hydrodynamic pods designed for easy kayak mounting.
Get Your Kayak Motor Recommendation

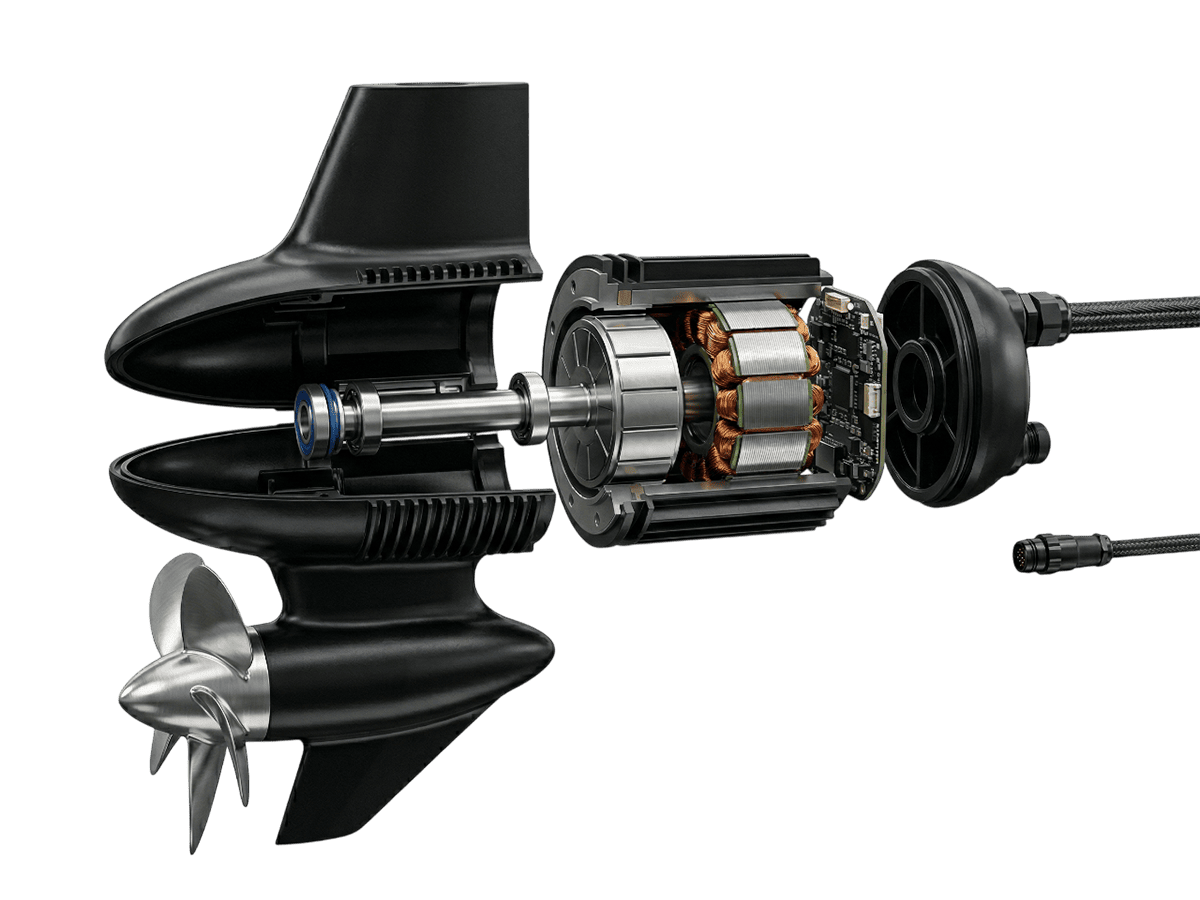

Exploded view technical diagram of an IHS Smart Drive custom electric kayak thruster motor, explicitly showcasing the IP68 waterproof housing, high-thrust propeller, and integrated FOC controller PCB for marine applications.

Common Challenges with Kayak & Small Boat Propulsion

Traditional paddling limits distance and speed while gas outboards bring noise, fumes, maintenance hassles, and environmental concerns. Many electric alternatives suffer from weak thrust, short runtime, water ingress failures, corrosion issues, or excessive noise that disturbs wildlife and fishing.

Frequent Water Ingress & Failures

Non-submersible or poorly sealed motors fail when submerged or splashed during launches and waves.

Noise Disturbing Wildlife & Fishing

Audible motor whine scares fish and disrupts peaceful paddling experiences.

Corrosion & Saltwater Damage

Standard materials degrade rapidly in brackish or ocean environments, shortening lifespan.

Limited Range & Weak Thrust

Low-power motors struggle against currents or wind, shortening trips and tiring users quickly.

Bulky or Heavy Designs

Large motors unbalance kayaks, complicate mounting, and reduce portability.

Short Battery Runtime on Longer Outings

Inefficient motors drain batteries fast, forcing early returns or extra weight for larger packs.

Slow Customization & High Minimum Orders

Suppliers delay tailored solutions for specific kayak sizes, thrust needs, or mounting styles.

Core Strengths of Our Electric Kayak Propulsion Systems

Purpose-built features ensure maximum thrust, longest range, complete waterproofing, and silent operation while keeping weight low and integration simple for any kayak or small watercraft.

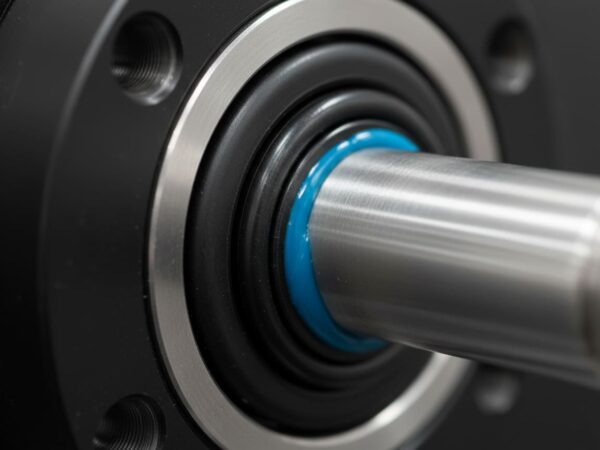

Macro cross-section of an IHS Smart Drive IP68 waterproof electric kayak motor, showing the heavy-duty double O-ring shaft seal designed for continuous underwater immersion.

IP68 Waterproof Motors

Fully submersible design with double-sealed shafts and connectors withstands continuous immersion and high-pressure washdowns.

Get a Quote

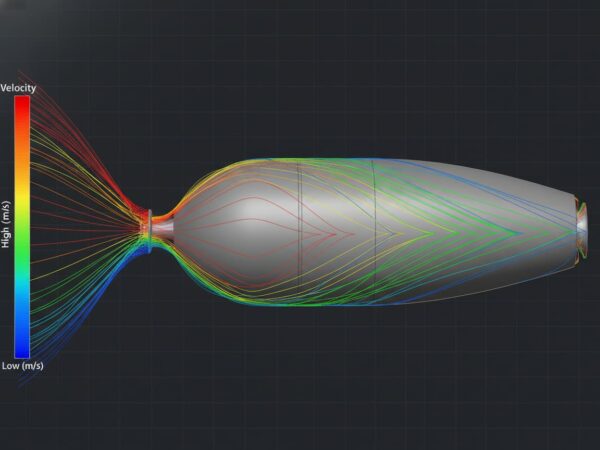

CFD fluid dynamics simulation of an IHS Smart Drive high-efficiency underwater kayak motor pod, demonstrating ultra-low hydrodynamic drag for extended battery range.

High-Efficiency Underwater Propulsion Motors

Up to 94% efficiency converts more battery power to thrust, extending range by 30–50% on the same pack.

Get a Quote

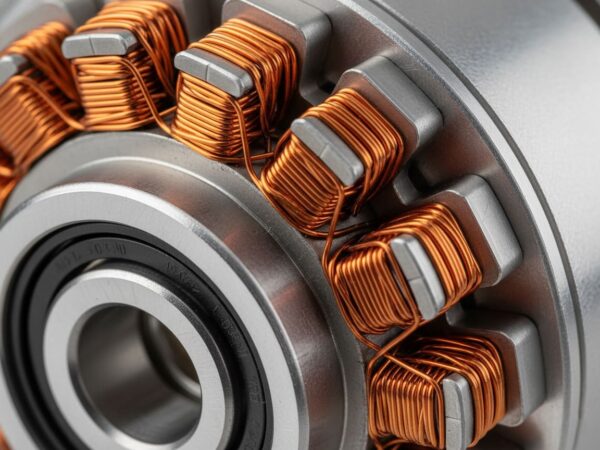

Close-up of the internal skewed stator and high-precision bearings inside an IHS Smart Drive brushless kayak motor, engineered for ultra-quiet, friction-free operation below 50 dB.

Brushless Outboard Motors with Silent Operation

Zero mechanical commutation and precision balancing achieve noise levels below 50 dB even at full throttle.

Get a Quote

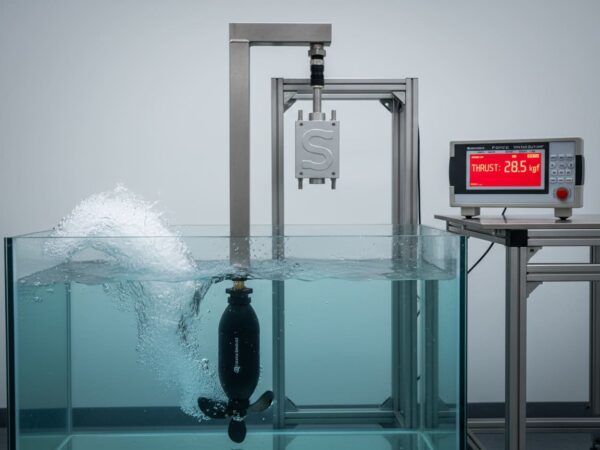

Industrial bollard pull thrust test of a compact IHS Smart Drive electric kayak motor creating an underwater vortex, with a dry digital load cell above water displaying high kilogram-force output.

Strong Thrust in Compact Package

High-torque density delivers 5–30 kgf thrust from lightweight units (1.5–6 kg) for easy kayak mounting.

Get a Quote

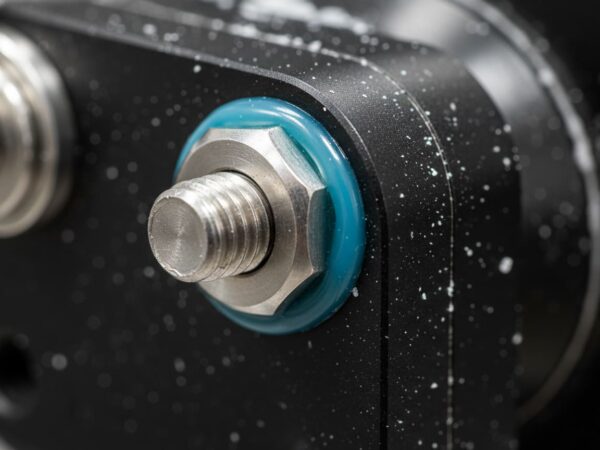

Extreme close-up of an IHS Smart Drive marine thruster motor during a salt-spray test, proving the corrosion resistance of its hard-anodized aluminum housing and 316L stainless steel bolts in saltwater environments.

Corrosion-Resistant Construction

Marine-grade stainless steel, anodized aluminum, and sealed composites resist saltwater and UV exposure for years of service.

Get a Quote

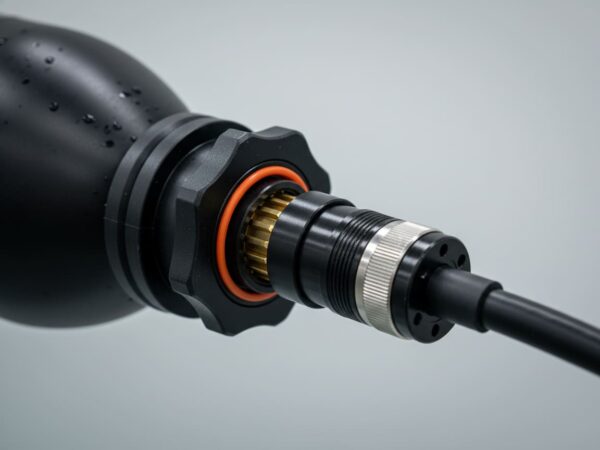

Heavy-duty, IP68 waterproof multi-pin signal connector for an IHS Smart Drive electric kayak motor, ensuring reliable PWM variable speed and reverse control in harsh marine conditions.

Variable Speed & Reverse Capability

Smooth PWM control with forward/reverse for precise maneuvering in tight spots or currents.

Get a Quote

Typical Specifications for Electric Kayak Motors

Our most commonly delivered configurations for kayak and small watercraft propulsion — optimized for thrust, efficiency, waterproofing, and lightweight mounting. Every parameter can be fully customized to your hull design and usage needs.
Specs NameSpecs Value
Voltage24V–72V DC
Thrust Output5–30 kgf (static)
Power Range300W – 2,000W
Efficiency88–94%
Max RPM1,500 – 5,000 RPM
Noise Level<45–55 dB at full throttle
IP RatingIP68 (fully submersible)
Weight (motor + mount)1.5–6 kg
Operating Temperature-10°C to +50°C (water-cooled)
Customization Lead Time7–14 days for functional samples
Request personalized matching and samples

Frequently Asked Questions About Electric Kayak Motors

Clear answers for kayak builders, outfitters, and enthusiasts seeking reliable, silent, and long-range electric propulsion solutions.

5–30 kgf static thrust depending on power and propeller, sufficient for single or tandem kayaks in varied conditions.

Yes — IP68 rating ensures complete submersion tolerance for underwater propulsion motors.

Typically under 50 dB at full power, making them ideal for stealthy fishing and nature observation.

4–12+ hours depending on thrust setting, battery capacity, and conditions (e.g., 100Ah at 24V for moderate use).

Yes — corrosion-resistant materials and sealed design make them suitable for brackish and full ocean use.

Yes — bidirectional control for precise maneuvering in tight spots or backing away from obstacles.
