BLDC Motor Components Explained: Complete Guide to BLDC Motor Structure

Introduction

A BLDC motor is not only an electromagnetic device that generates rotation.

It is a highly integrated electromechanical system consisting of precision mechanical components, electromagnetic assemblies, and electronic control units.

Many engineers focus mainly on motor specifications such as voltage, speed, and torque. However, the actual performance and reliability of a BLDC motor depend heavily on the design and manufacturing quality of each internal component.

A well-designed motor requires the correct combination of:

  • Mechanical structure
  • Material selection
  • Manufacturing process
  • Assembly accuracy
  • Environmental protection

At Smart Drive, we develop custom BLDC motors based on specific application requirements, including size limitations, torque requirements, operating environment, and integration conditions.

This guide explains the main BLDC motor components, their materials, manufacturing processes, and special design considerations for different applications.

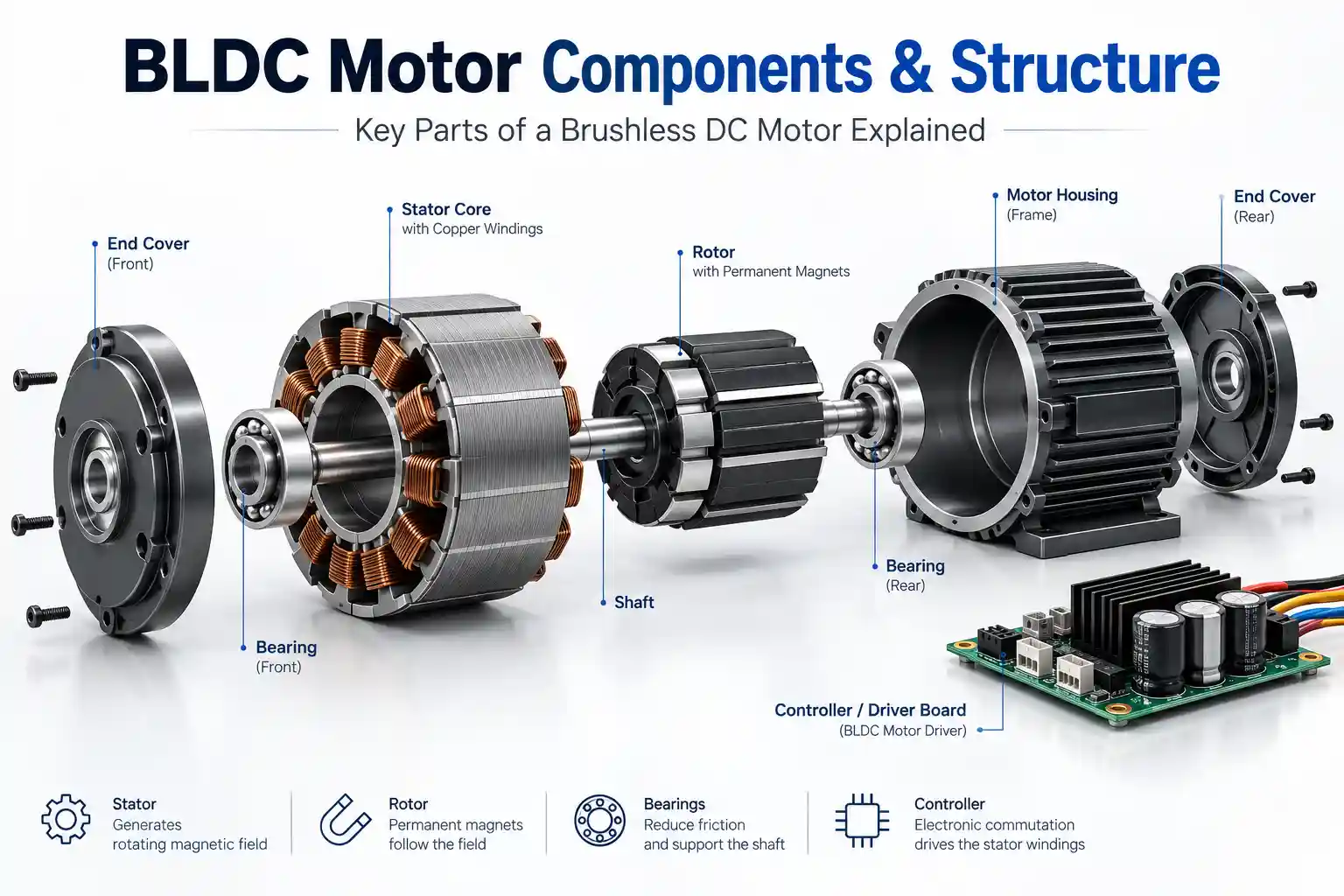

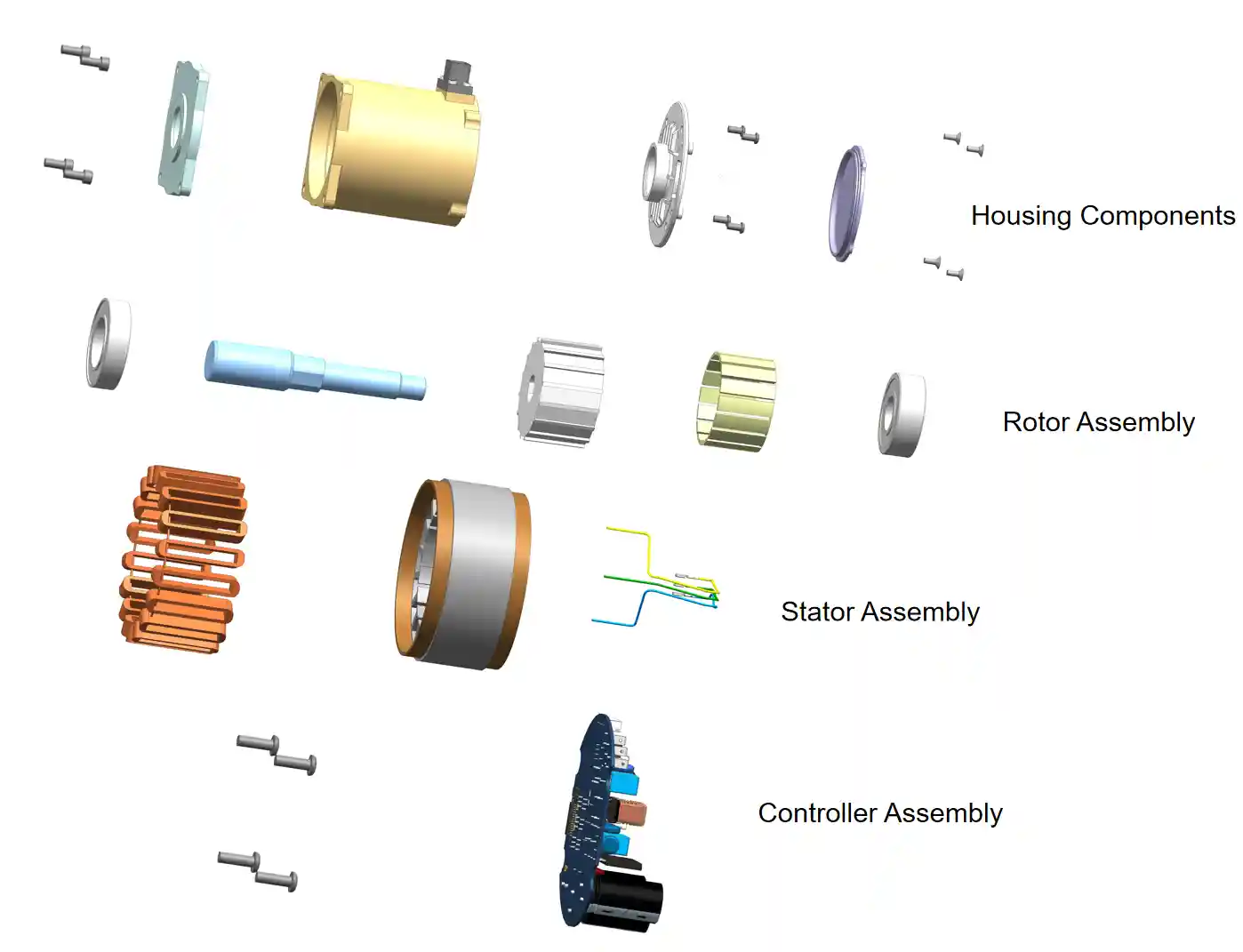

Exploded view of BLDC motor components including housing, stator, rotor, bearings, shaft and controller assembly
figure1：BLDC Motor Exploded View

1. Overall Structure of a BLDC Motor

A typical BLDC motor consists of three major assemblies:

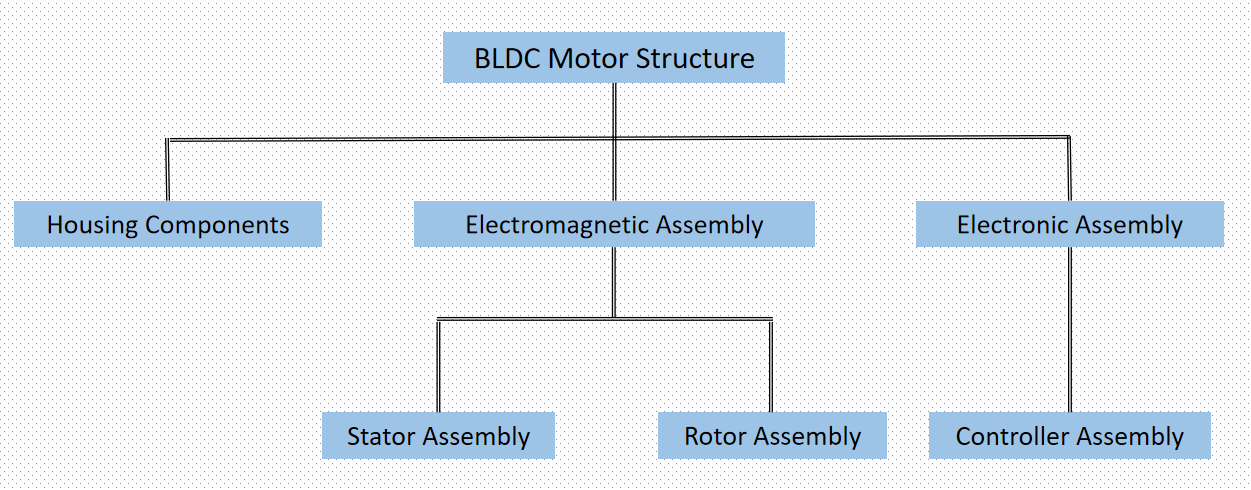

Each component of BLDC Motor Components and BLDC Motor Structure serves a specific function: the mechanical structure provides support and protection, the stator and rotor convert electrical energy into mechanical torque, and the controller manages motor operation.
figure2：Block Diagram of BLDC Motor Components

The complete motor structure normally includes:

  • Housing
  • Front and rear end covers
  • Mounting flange
  • Shaft
  • Bearings
  • Rotor assembly
  • Stator assembly
  • Controller PCB
  • Connector and wiring components

Each component has a specific function.

The mechanical structure provides support and protection.

The stator and rotor convert electrical energy into mechanical torque.

The controller manages motor operation.

2. Mechanical Housing Components

The mechanical housing provides the external structure of the motor.

It supports internal components, maintains alignment, protects electrical parts, and helps transfer heat away from the motor.

Main mechanical components include:

  • Motor housing
  • End covers
  • Mounting flange
  • Shaft
  • Bearings
  • External mechanical interfaces

2.1 Motor Housing

The housing is one of the most important structural components.

Its main functions include:

  • Fixing the stator assembly
  • Protecting internal components
  • Providing heat dissipation
  • Maintaining mechanical strength

Aluminum Housing Materials

For medium and high-performance BLDC motors, aluminum alloys are commonly used.

Typical materials include:

Aluminum 6061

6061 aluminum alloy is widely used because of its balance between:

  • Strength
  • Lightweight
  • Corrosion resistance
  • Machining performance

Typical properties:

Property Value
Tensile strength Around 310 MPa
Density 2.7 g/cm³
Thermal conductivity About 167 W/m·K

Common manufacturing processes:

  • CNC machining
  • Die casting
  • Surface anodizing

Applications:

  • Industrial motors
  • Robotics
  • UAV motors
  • Automotive actuators

Plastic Motor Housing

Small BLDC motors often use engineering plastics to reduce weight and cost.

Common materials:

Nylon + Glass Fiber (PA66+GF)

Advantages:

  • High mechanical strength
  • Good impact resistance
  • Low weight
  • Good electrical insulation

Typical applications:

  • Small appliances
  • Fans
  • Pumps
  • Consumer electronics

PPS + Glass Fiber

PPS (Polyphenylene Sulfide) is used for higher temperature applications.

Advantages:

  • Excellent temperature resistance
  • Chemical resistance
  • Dimensional stability

Applications:

  • Automotive motors
  • High temperature pumps
  • Precision equipment

Common processes:

  • Injection molding

2.2 End Covers and Mounting Flange

The front and rear end covers have similar material requirements as the motor housing.

They mainly provide:

  • Bearing positioning
  • Shaft support
  • Structural protection
  • Mechanical mounting interface

The key requirement is machining accuracy because bearing alignment directly affects:

  • Rotor concentricity
  • Vibration
  • Noise
  • Motor lifetime

2.3 Shaft and Bearings

Motor Shaft

The shaft transfers torque from the rotor to the external load.

Common materials:

SUS304

Advantages:

  • Corrosion resistance
  • High strength
  • Good wear resistance

Manufacturing processes:

  • CNC turning
  • Grinding

45 Carbon Steel

Advantages:

  • Moderate tensile strength
  • Excellent machinability
  • Competitive cost

Manufacturing processes:

  • CNC turning
  • Grinding
  • Quenching & tempering

Bearings

Bearings support rotor rotation and maintain the air gap between rotor and stator.

Common bearing types:

  • Ball bearings
  • Ceramic bearings
  • Sleeve bearings

Selection depends on:

  • Speed
  • Load
  • Temperature
  • Lifetime requirement
  • Operating Environment

High-speed motors require bearings with:

  • Low friction
  • High precision
  • Good thermal stability

3. Stator Assembly

The stator is the electromagnetic core of the motor.

If you want to understand how the stator generates a rotating magnetic field together with the rotor, read our How Does a BLDC Motor Work? guide.

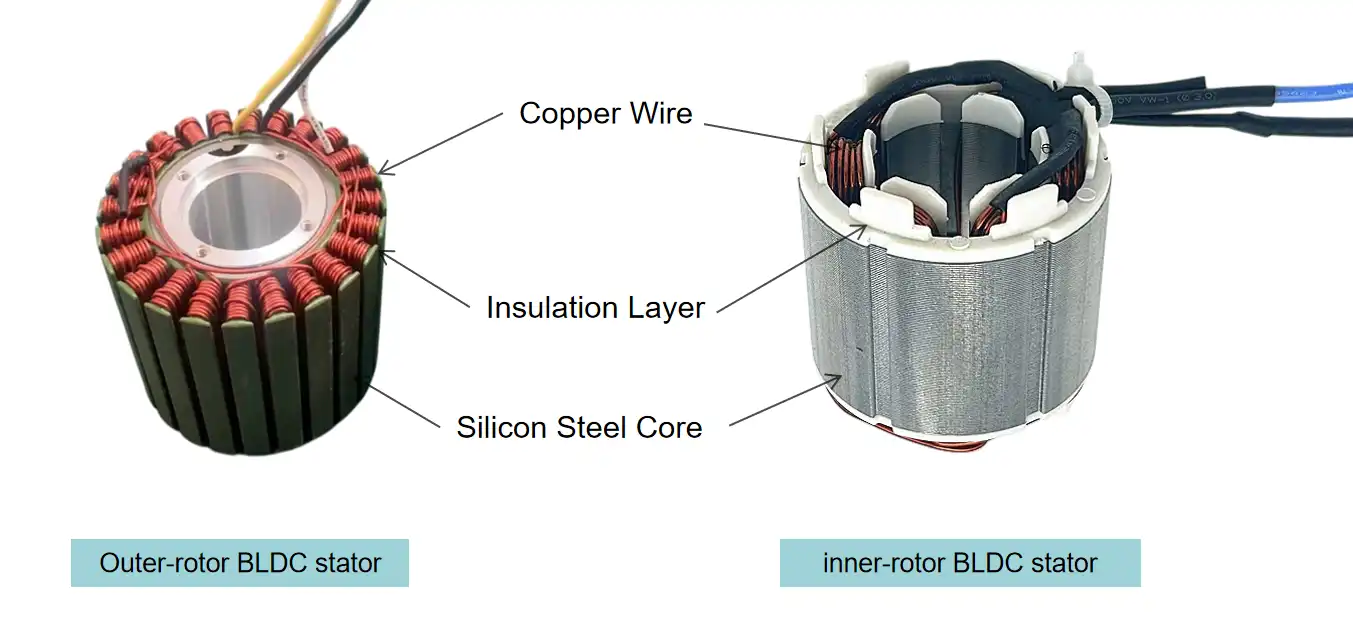

BLDC motor stator components showing laminated core copper windings slot insulation and phase wiring
figure3：BLDC Motor Stator Assembly Structure

Main components:

  • Silicon steel laminations
  • Slot insulation
  • Copper winding
  • Insulation coating

3.1 Stator Core

The stator core is made from laminated electrical steel.

Silicon Steel Grades for Motor Cores：

Grade Thickness P₁.₅/₅₀ (W/kg) B₅₀ (T) Typical Use
50WW470 0.50 mm ≤ 4.70 1.61 Economy, low-speed motors
50WW290 0.50 mm ≤ 2.90 1.64 Industrial servos, general BLDC
35WW300 0.35 mm ≤ 3.00 1.65 Robot joints, drone motors
35WW250 0.35 mm ≤ 2.50 1.66 High power-density, automotive

Key Parameters

  • Core Loss (P₁.₅/₅₀): Heat generated in the core per kilogram; lower value means cooler operation and higher efficiency. Critical for high-frequency / high-speed designs.
  • Magnetic Induction (B₅₀): Flux density under 5000 A/m excitation; higher value delivers greater torque density within the same core volume.
  • Lamination Thickness: Thinner sheets reduce eddy-current loss at high frequencies but raise material cost and stamping difficulty.
  • Stacking Factor: Ratio of active magnetic material to total stack volume; typically 0.94–0.97, determined by insulation coating and lamination flatness.

The laminated structure reduces:

  • Eddy current loss
  • Heat generation
  • Magnetic loss

Manufacturing process:

  1. Steel sheet stamping
  2. Lamination stacking
  3. Insulation coating

The quality of the stator core directly influences:

  • Efficiency
  • Torque density
  • Temperature rise

3.2 Slot & Bobbin Insulation of Stator Windings

Slot and bobbin insulation isolates windings from the stator core to avoid ground short circuits. Three mainstream solutions are widely used.

. Molded Plastic Bobbin

Structure: Injection-molded plastic frame fitted over stator teeth.

Insulation: Rigid integral barrier.

Material: GF-PBT, GF-PA66.

Pros: Friendly for automatic winding; Cons: Reduces slot fill factor.

Application: Small outer-rotor drone & miniature robot motors.

. Slot Insulation Paper

Structure: Pre-cut flexible film inserted into slots.

Insulation: Soft lining layer on slot inner surfaces.

Material: PET, NMN, NHN.

Pros: Higher slot fill factor; Cons: Complicated insertion process.

Application: Robot joint motors, medium-sized industrial BLDC.

. Direct Slot Coating

Structure: Insulating layer coated directly on slot walls.

Insulation: Thin in-situ dielectric film.

Material: Polyimide, epoxy coating.

Pros: Optimal slot utilization; Cons: Strict process control required.

Application: High-performance servo & hollow torque motors.

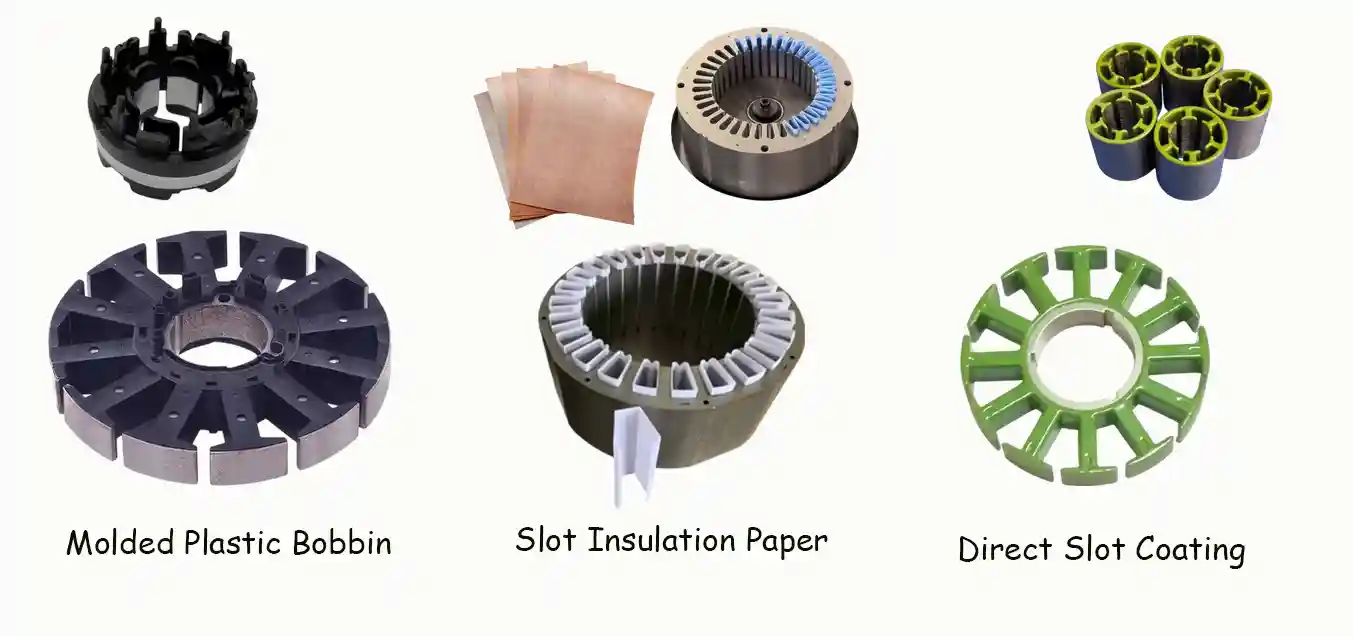

Comparison of three stator slot insulation structures for brushless DC motors, including plastic bobbin, slot liner paper and direct coating insulation for robotic and drone BLDC stators.
figure4：Three Main Slot Insulation figure4：Structures for Brushless Motor Stators

3.3 Copper Windings

Copper winding generates the magnetic field required for motor operation.

Important parameters include:

  • Wire diameter
  • Number of turns
  • Winding connection method: Delta or Star
  • Slot fill factor
  • Number of parallel branches
  • Number of parallel strands
  • Coil pitch

Manufacturing processes:

  • Automatic winding
  • Manual winding
  • Forming
  • Soldering

High-performance motors often require optimization of:

  • Copper density
  • Thermal path
  • Winding arrangement

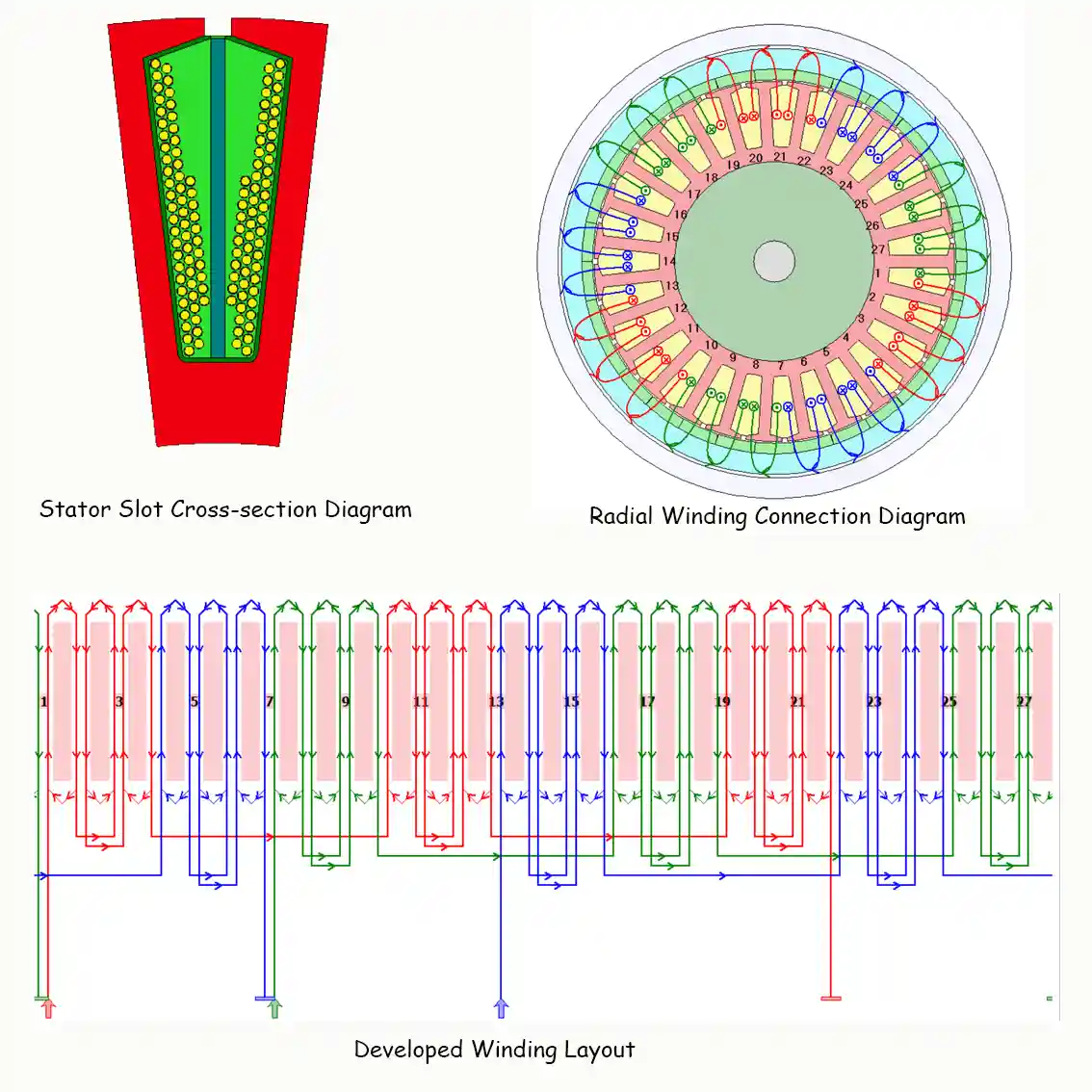

Complete winding drawing of 27-slot brushless DC motor stator, including circular winding connection diagram, developed winding schematic and stator slot conductor cross-section. Illustrates three-phase winding distribution, coil connection and in-slot wire arrangement for motor design and winding manufacturing.
figure5：27 Slot BLDC Stator Double Layer Winding Layout & Slot Cross Section Diagram

4. Rotor Assembly

The rotor is one of the most important components in a BLDC motor because it directly generates mechanical rotation through the interaction between permanent magnets and the stator magnetic field.

Based on the relative position between the rotor and stator, BLDC motors are mainly divided into two structural types:

  • Inner Rotor BLDC Motor
  • Outer Rotor BLDC Motor (Outrunner Motor)

The selection between these two structures depends on the required speed, torque, power density, mechanical integration, and application conditions.



Inner Rotor BLDC Motor Structure

In an inner rotor BLDC motor, the rotor is located inside the stator.

The stator is fixed to the motor housing, while the rotor with permanent magnets rotates together with the shaft inside the stator bore.

The typical structure is:

Motor Housing
|
|
Stator Core + Windings
|
Air Gap
|
Permanent Magnets
|
Rotor Core
|
Shaft

Inner rotor designs are widely used when high speed capability and compact mechanical dimensions are required.

Typical applications include:

  • Industrial equipment
  • Pumps
  • Fans
  • Automotive auxiliary motors
  • Power tools
  • Precision motion systems



Outer Rotor BLDC Motor Structure (Outrunner Motor)

In an outer rotor BLDC motor, the rotor is located outside the stator.

The stator remains fixed at the center, while the outer rotor containing permanent magnets rotates around the stator.

The typical structure is:

Outer Rotor Housing

|

Permanent Magnets
|
Air Gap
|
Stator Core + Windings
|
Motor Shaft

Outer rotor motors are commonly selected when high torque density and direct-drive capability are important.

Typical applications include:

  • UAV and drone propulsion motors
  • Electric fans
  • Robotics joints
  • Electric bicycles
  • Marine thrusters

Rotor structure also influences torque-speed characteristics, which is an important factor when engineers select a BLDC motor for a new product.

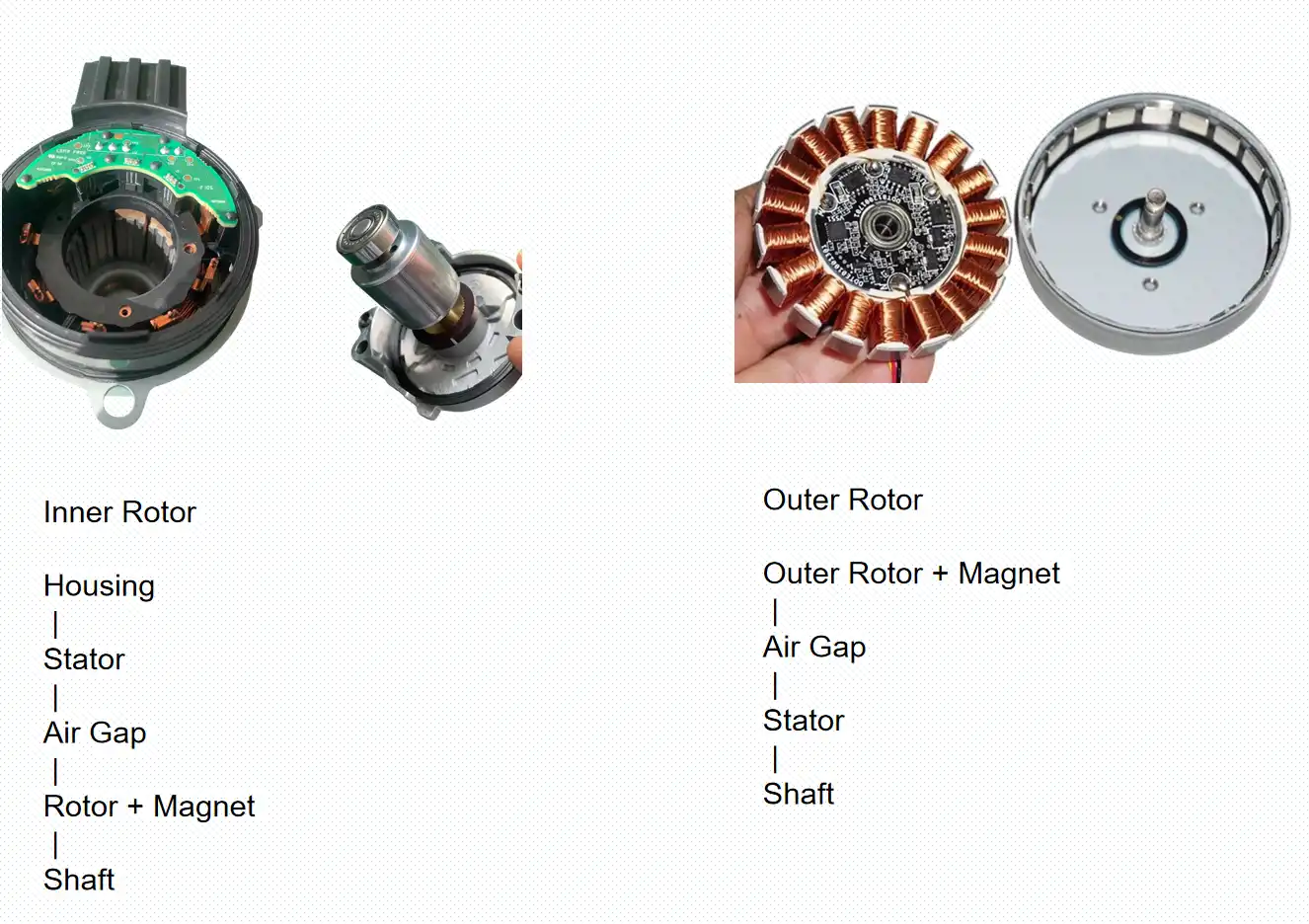

6.Inner Rotor and Outer Rotor BLDC Motor Structure Comparison
figure6：Inner Rotor and Outer Rotor BLDC Motor Structure Comparison

4.1 Rotor Core

As the core structural part of DC brushless motors, the rotor core undertakes magnetic circuit conduction and torque transmission. It adopts a laminated stacked structure to curb eddy current loss and adapt to high-speed operation. It is categorized into inner and outer rotor types, as well as surface-mounted and embedded structures for permanent magnet assembly. Post-forming dynamic balance treatment ensures low-vibration and stable motor operation.

The rotor core usually uses similar electrical steel materials as the stator.

4.2 Permanent Magnets

4.2.1. Permanent Magnet Structure of Inner Rotor BLDC Motor

The inner rotor structure features an external stator and an internal rotor, which is the mainstream solution for industrial servo motors, vehicle drive motors and high-speed power equipment. It includes two core magnet structures: Surface Permanent Magnet (SPM) and Interior Permanent Magnet (IPM).

Structure Definition

SPM (Surface Permanent Magnet): Arc or rectangular permanent magnets are directly bonded and fixed on the outer circular surface of the rotor core with high-temperature structural adhesive. The magnets are exposed without core wrapping, featuring a simple structure.
IPM (Interior Permanent Magnet): Permanent magnets are embedded in pre-reserved slots of the rotor core and fully wrapped and constrained by the core. Common topologies include straight type, V-type, double-layer V-type and spoke type, with excellent mechanical strength.

Comparison of Advantages, Disadvantages and Application Scenarios of SPM and IPM

Structure Type
Magnetic & Torque
Mechanical Reliability
Manufacturing & Cost
Control & Speed Range
Typical Applications
SPM (Surface-mounted)
Sinusoidal air-gap field, low cogging torque, smooth output
Adhesive-fixed only, poor high-speed stability, weak anti-demagnetization
Simple structure, low cost, easy dynamic balance
Ld=Lq, simple control, narrow field-weakening range
Medium-low speed servos, pumps, fans, auxiliary motors
IPM (Interior)
Salient pole effect, available reluctance torque, high torque density
Core-wrapped magnets, ultra-high strength, excellent anti-demagnetization
Complex structure, high processing cost
Ultra-wide speed range, requires algorithm to suppress torque ripple
EV main drives, high-speed compressors, high-end servos

4.2.2. Permanent Magnet Structure of Outer Rotor BLDC Motor

The outer rotor structure features an external rotor and an internal stator, with large rotational inertia and excellent low-speed torque performance, widely applied in civil small-power equipment. Outer rotor motors adopt full SPM structure without IPM design, divided into two process types: arc tile-shaped magnet and rectangular flat magnet.

 Outer Rotor Arc Tile-shaped Magnet (High-end Mainstream Type)

Structure Definition: Custom arc-shaped magnets fit closely with the inner wall of the outer rotor shell, arranged evenly in a ring with uniform stress distribution.
Pros & Cons: Excellent magnetic field sinusoidality, ultra-low cogging torque, silent operation and superior low-speed stability; the disadvantage is high customized mold cost and potential centrifugal demagnetization risk under ultra-high speed.
Application Scenarios: UAV power motors, gimbal servos, vehicle silent fans and high-end civil low-speed power motors.

 Outer Rotor Rectangular Flat Magnet (Economical Type)

Structure Definition: Standard rectangular flat magnets without arc customization are directly bonded to the inner wall of the outer rotor shell, featuring high universality for mass production.
Pros & Cons: Low magnet cost, no mold opening required and high assembly tolerance; the disadvantage is flat-top magnetic field with high harmonics, obvious vibration and noise, and poor torque smoothness.
Application Scenarios: Household fans, small water pumps and low-cost small household appliance motors for general scenarios with no strict requirements for silence and operation smoothness.

4.2.3. Common Permanent Magnet Material Parameters for BLDC Motors (Including Molding Process)

This table adds the molding process column, integrating material grades, core magnetic properties, temperature resistance parameters and structural adaptability, covering all mass-production mainstream materials with refined data.
Material & Grade Molding Process Br (T) Max Working Temp Structural Adaptability Features
Sintered NdFeB (N/M Series) Powder metallurgy, sintering, cutting/polishing 1.20~1.28 80~100°C Universal for inner/outer rotor SPM Cost-effective, for UAVs, fans, pumps
Sintered NdFeB (SH/UH  Series) High-Hcj sintering, precision shaping, anti-corrosion coating 1.18~1.25 150~180°C Preferred for IPM & vehicle high-temp motors Excellent high-temp demag. resistance, for heavy loads
Bonded NdFeB Magnetic powder + resin mixing, compression/injection molding 0.50~0.70 100°C Can form special-shaped structures Only for micro low-speed precision motors
Strontium Ferrite Magnet Powder pressing, low-temp sintering, rigid curing 0.38~0.42 200°C Suitable for economical outer rotor SPM Low cost, corrosion resistant, large volume for fans/pumps
Samarium Cobalt (Sm₂Co₁₇) Rare earth alloy sintering, precision grinding 1.05~1.15 300°C Specialized for ultra-high temp, applied in high-performance IPM High cost, for aerospace & petroleum equipment



4.2.4. Special Processes for Extreme Working Conditions

High-speed Motor Protection Sleeve Process (SPM-only)

IPM structures rely on core constraint without sleeve reinforcement. All SPM magnets require graded protective schemes according to linear speed, which is the standard mass-production selection specification.
Max Linear Speed Protection Scheme Structural Features Application Scenarios
≤40m/s Full-coverage high-temp adhesive (no sleeve) Low cost, no eddy loss, simple assembly small pumps, low-speed aux motors
40~70m/s 0.2-0.5mm non-magnetic stainless sleeve High rigidity, reliable, slight eddy loss Industrial pumps, vehicle SPM, medium-speed equipment
>70m/s Carbon fiber winding sleeve Non-magnetic, zero eddy loss, high tensile strength High-speed UAVs, precision spindles, high-end servos
High-temperature Anti-demagnetization Process
N/M series NdFeB is prohibited above 120℃; SH/UH high-temperature resistant magnets are mandatory. SPM structures adopt dual protection of high-temperature adhesive + sleeve; IPM structures optimize rotor magnetic isolation bridge to improve anti-demagnetization threshold.

High-reliability Anti-vibration Process

Outer rotor motors adopt “bonding + epoxy potting” to fill magnet gaps and eliminate vibration noise; IPM structures are equipped with positioning slots + integral potting to avoid magnet offset caused by high-speed vibration.

4.2.5. Comprehensive Selection Summary

Inner Rotor:
SPM for low-cost, medium/low-speed and smooth-operation scenarios; IPM for high-speed, wide-speed-range, high-temperature heavy-load and high-torque scenarios.
Outer Rotor:
All adopt SPM structure; arc tile-shaped magnets for silent high-end equipment, rectangular flat magnets for mass low-cost equipment.
High-speed Protection Rule:
SPM must be equipped with reinforcing sleeve for high-speed operation; IPM requires no sleeve and is the optimal solution for high-power high-speed motors.
Material Matching Rule:
Conventional working conditions use ordinary sintered NdFeB; high-temperature conditions use high-temperature resistant NdFeB or SmCo; extreme cost-sensitive conditions use ferrite magnets.
Overview of typical brushless DC motor rotor topologies, covering interior embedded magnets, interior & outer surface-mounted magnets, injection molded bonded magnets, and high-speed SPM rotors reinforced by stainless steel sleeves or carbon fiber composite sleeves. Different permanent magnet materials: NdFeB and strontium ferrite are applied according to operating temperature, speed and cost requirements.
figure7：Permanent Magnet Rotor Topologies for BLDC Motors



5. Controller Assembly

Modern BLDC motors are increasingly integrated with electronic controllers.

The controller provides:

  • Electronic commutation
  • Speed regulation
  • Current control
  • Protection functions

A typical controller includes:

  • PCB
  • MCU
  • MOSFET power stage
  • Sensors
  • Communication interface

5. Controller Assembly

Modern BLDC motors are increasingly integrated with electronic controllers, forming a compact electromechanical system. The controller converts DC power into three-phase current, manages motor operation, and provides protection and communication functions.

A typical BLDC motor controller consists of four modules:

  • Power stage
  • Control circuit
  • Position sensing circuit
  • Communication interface

5.1 Main Hardware Components

MCU (Microcontroller)

The MCU is the controller’s processing unit. It manages PWM output, current sampling, fault detection, and communication with the host system.

Common suppliers include STMicroelectronics, Infineon, NXP, and Texas Instruments.

Power Stage

The power stage converts DC input into three-phase output for the stator windings.

Most BLDC motors below 5 kW use MOSFETs, while higher-power systems may use IGBTs.

Typical components include:

  • MOSFET bridge
  • Gate driver IC
  • Current sensing circuit
  • DC bus capacitor

Position Feedback

Rotor position is detected using:

  • Hall sensors
  • Magnetic angle sensors
  • Encoders
  • Sensorless back-EMF estimation

The selected method depends on the required accuracy, speed, and application.

5.2 Controller Installation

Integrated controllers are commonly mounted inside the rear end cap or directly on the motor housing.

Internally, the controller connects to the stator through the U, V, and W phase terminals. External connectors provide power input, control signals, and communication.

Integrated BLDC motor controller showing MCU, MOSFET power stage, three-phase U V W connections, Hall sensors, communication interfaces, and thermal protection structure
figure8：Integrated BLDC Motor Controller Structure and Electrical Connections

Typical external interfaces include:

  • DC power
  • Hall sensor
  • Encoder
  • CAN Bus
  • UART
  • PWM control

5.3 Protection and Thermal Management

For demanding environments, the controller usually incorporates additional protection.

Conformal Coating

Acrylic, silicone, or polyurethane coatings are applied to the PCB to improve moisture, dust, and corrosion resistance.

Potting

For higher protection levels, the controller is encapsulated with epoxy, silicone, or polyurethane resin.

Potting provides:

  • IP67/IP68 waterproofing
  • Vibration resistance
  • Electrical insulation
  • Improved durability

It is widely used in automotive pumps, outdoor equipment, and marine motors.

Thermal Management

Power devices generate significant heat during operation.

Common cooling solutions include:

  • Aluminum heat sink
  • Die-cast aluminum end cover
  • Thermal pads
  • Thermal grease
  • Metal-core PCB (MCPCB)

Efficient heat transfer improves controller reliability and supports continuous high-load operation.

6. BLDC Motor Assembly Process

The performance of a BLDC motor depends not only on component quality but also on the precision of the assembly process. Dimensional accuracy, insulation quality, bearing alignment, and rotor balance all directly influence efficiency, noise, vibration, and service life.

A typical assembly process consists of four stages:

  • Stator Assembly
  • Rotor Assembly
  • Controller Assembly
  • Final Motor Assembly

6.1 Stator Assembly

The stator is assembled before it is installed into the motor housing.

Typical process:

Lamination Stacking
↓
Insulation Installation
↓
Coil Winding
↓
Lead Connection
↓
Varnish Impregnation
↓
Inspection
↓
Finished Stator Assembly

Key Process Requirements

  • Core stacking should minimize burrs and maintain overall flatness.
  • Slot insulation must completely isolate the winding from the steel laminations.
  • Copper winding should maintain consistent turns, wire tension, and fill factor.
  • Varnish impregnation (dip or vacuum pressure impregnation, VPI) improves insulation strength, heat dissipation, and vibration resistance.
  • After curing, the stator should pass insulation resistance and dielectric withstand tests before assembly.

6.2 Rotor Assembly

The rotor assembly combines the shaft, rotor core, and permanent magnets into a high-precision rotating unit.

Typical process:

Rotor Core
↓
Press-fit Shaft
↓
Magnet Bonding
↓
Retaining Sleeve (Optional)
↓
Dynamic Balancing
↓
Finished Rotor Assembly

Key Process Requirements

  • The shaft must be accurately press-fitted to maintain concentricity.
  • Permanent magnets are bonded using high-strength structural adhesive and must be positioned with the correct magnetic polarity.
  • High-speed rotors may require a carbon fiber or stainless-steel retaining sleeve to prevent magnet separation caused by centrifugal force.
  • Dynamic balancing (typically ISO 21940) minimizes vibration and improves bearing life.

6.3 Final Motor Assembly

After the stator and rotor assemblies are completed, they are integrated into the final motor.

Typical process:

Housing Preparation
↓
Press-fit Stator
↓
Install Bearings
↓
Insert Rotor Assembly
↓
Install End Caps
↓
Mount Controller
↓
Connect U / V / W Phases
↓
Electrical & Mechanical Testing
↓
Finished BLDC Motor

Key Process Requirements

Stator Installation

The stator is usually press-fitted into the housing to ensure good mechanical rigidity and efficient heat transfer.

Bearing Installation

Bearings should be pressed onto the correct race using dedicated tools to avoid preload or damage.

Rotor Installation

The rotor must rotate freely without contacting the stator. The designed air gap should remain uniform around the full circumference.

Controller Connection

The controller is connected to the stator through the U, V, and W phase terminals, followed by sensor wiring and external connector installation.

Performance Testing

Every finished motor should undergo comprehensive testing, including:

  • No-load speed
  • Phase resistance
  • Insulation resistance
  • High-voltage withstand
  • Current consumption
  • Noise and vibration
  • Rotation direction
  • Functional test

8. How Smart Drive Develops Custom BLDC Motor Structure

At Smart Drive, we design BLDC motors according to the complete system requirements.

Our engineering capability includes:

Mechanical Design

  • Housing optimization
  • Shaft design
  • Bearing selection
  • Structural integration

Electromagnetic Design

  • Stator optimization
  • Rotor magnetic design
  • Performance simulation

Prototype Development

Low Volume Manufacturing

  • Pilot production
  • Engineering modification
  • OEM manufacturing support

Conclusion

A BLDC motor is a complex electromechanical system.

Every component, from housing materials and bearings to stator insulation, rotor magnets, and controller protection, affects the final performance.

Understanding BLDC Motor Components and BLDC Motor Structure helps engineers design more reliable and efficient motor systems.

Smart Drive supports OEM customers from motor structure design to prototype development and production.
